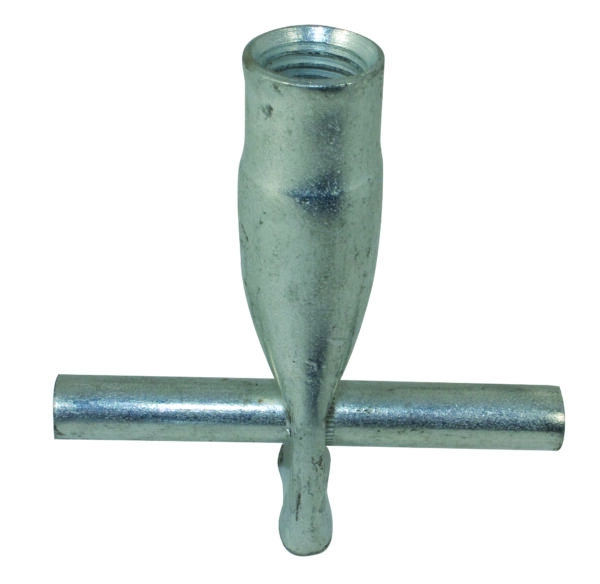

Flat End Fixing Sockets With Crosspin

These sockets facilitate fixing to units where additional reinforcement is not required. These are best suited to lightweight applications. Available in stainless steel on request.

Clear
Product Code Thread (M) L (mm) P (mm) SWL (Kg) Pack Size
SFCP1050 10 50 12 x 70 350 200
SFCP1260 12 60 12 x 70 500 100
SFCP1680 16 80 12 x 100 850 50
SFCP20100 20 100 14 x 120 1300 25
SFCP24120 24 120 14 x 120 1800 12
