High output pneumatically assisted spray glue gun for industrial use. Gun dispenses hot melt when held at any angle, with adjustable pattern. A nontoxic adhesive spray system, it covers large area and applies hot melt to heat sensitive substrates without damage. Requires air and electric supply. Maximum 7 bar (100psi), for best results 4-6 bar (60-90psi) dependent on output requirements.

Model Melt rate Glue size Wattage Power cable Weight

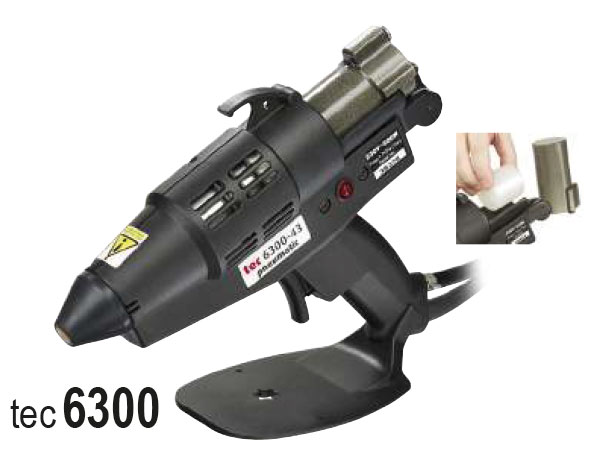

tec6300 4.2kg (10lbs)/hr 43mm (1.”) glue cartridge 500W 3m (10 ft) 1.4kg (3lbs)


  • The casttec® system contributes to fast, efficient work that saves time and money.
  • Speed of set: good molten tack holds inserts securely in position
  • Cost effective: a fraction of the cost of magnets and tapes
  • Fast work: instant bond, no need to fix or clamp bonded parts while glue sets
  • Easy clean-up: glue begins to crystallize after 8-10 hours to allow for easy and clean removal with a scraper
  • Versatile: bonds all common materials: metal, plastic, wood and foams
  • Bonds over form oil: can be used before or after light oil application, the heat of the glue can burn through the oil barrier
  • Continuous work: melt-on-demand guns mean that there’s no need to wait for glue to melt
  • Doesn’t melt foam: hot melt can be sprayed on, or use a special temperature module to extrude the hot melt directly on to polystyrene foam without damage
  • Safe to work with: solvent-free, non-flammable, no special storage, no VOC’s – contributing to a safe work place, and a cleaner environment
  • No stringing: clean glue cut-off without stringing keeps work spaces clean
